Snugger Parts & Accessories

SF2300 Schematic, Parts and price list

Click on the link below to view an exploded view of the SNUGGER SF2300 heater. Scroll down the image to see description, part number and price. All parts are coded and all prices include GST. We keep general serviceable parts in stock i.e. fan motor, glow pin, gaskets, burner, etc… Some of these parts may fit other heaters so please contact us if you have problems getting parts or advice for your other heater.

SPARE-PARTS-LIST.pdf

PRICE: Varies

FREIGHT: Varies

WARRANTY: Varies

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

DHA REMOTE heater (frame and tank only)

Stainless steel heater stand with 2.5lt tank

NOTE: BUY THE SF2300 KIT AND REMOTE STAND AND DO THE ASSEMBLY WORK YOURSELF AND SAVE $100’s. ALSO SUITABLE FOR ANY OTHER 2000w HEATER ON THE MARKET

PRICE: $490.00 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

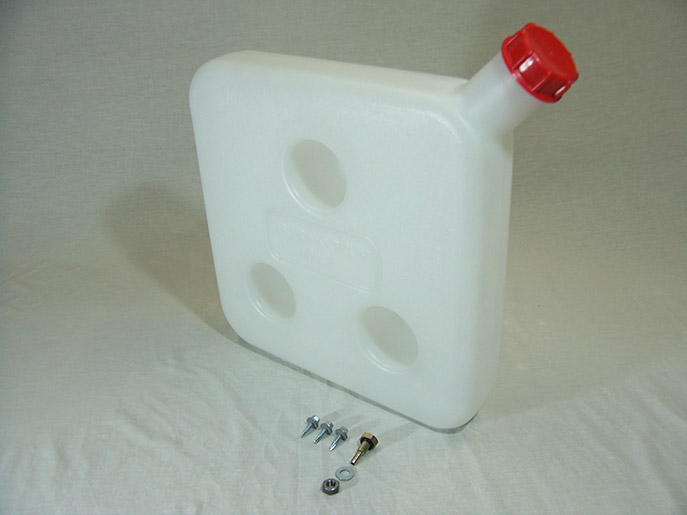

DHA REMOTE FUEL TANK 2.5LT

Suites REMOTE heater but can be used as a fuel tank in any application. Has on/off tap and fuel filter

PRICE: $109.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

Steel with inbuilt fuel filter and on/off tap. Capacity=2.5lt. Weight=1.14kg. Length=250mm. Width=120mm. Height=200mm

ENQUIRE: sales@dieselheatingaustralia.com

Stainless Steel upright 7lt diesel tank with sight tube

7lt upright S/S tank 330Hx270Wx100D fits on the draw bar against a tool box or jerry can holder. can be mounted left or right handed.

PRICE: $59.00 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Inline fuel filter 5mm

Some filters work and others don’t. This filter works very well with any diesel heater and its at the right price.

PRICE: $9.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Fuel line mini bolt clamp

Worm drive hose clamps do not retain their shape on small diameter hose which means a poor connection and a smelly smokey heater. Bolt clamps are designed to hold their shape resulting in consistent pressure around the circumference of the hose

PRICE: $3.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Tee Piece 8mm x 5mm x 8mm

Fitted in line for vehicles with 8mm engine supply or return lines

NOTE: ALL VEHICLES ARE DIFFERENT. LATER VEHICLES ARE COMMON RAIL AND ALL VEHICLES HAVE DIFFERENT DIA FUEL AND RETURN LINES. CONTACT US BEFORE YOU START CUTTING ANY FUEL LINES

PRICE: $8.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Tee piece 10mm x 5mm x 10mm

Fitted in line for vehicles with 10mm engine supply or return lines

NOTE: ALL VEHICLES ARE DIFFERENT. LATER VEHICLES ARE COMMON RAIL AND ALL VEHICLES HAVE DIFFERENT DIA FUEL AND RETURN LINES. CONTACT US BEFORE YOU START CUTTING ANY FUEL LINES

PRICE:

FREIGHT:

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Nylon diesel fuel line 2mm i.d x 5mm o.d. x 8mt

Suitable for all diesel heaters up to 5000w

NOTE: RIDGED SMALL DIAMETER FUEL LINE ACCURATELY METERS THE CORRECT FUEL DOSAGE TO THE HEATER PARTICULARLY OVER A LONG DISTANCE. RUBBER HOSE WILL EXPAND AND CONTRACT RESULTING IN OVER FUELING OF THE HEATER (smoking)

PRICE: $19.95 inc gst (8mt)

FREIGHT: $10.00 Aust wide

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Fuel stand pipe

Use a Jerry can or any diesel friendly tank and fit the stand pipe to give you a reliable fuel supply. Cut the pipe to suite any depth tank, fit the supplied filter and you have a very economical alternative for a fuel tank

NOTE: ANY TANK USED FOR DIESEL HEATERING MUST HAVE A VENTED CAP OR A SUITABLE ALTERNATIVE

PRICE: $29.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Tank collar and venting lockable cap

You may wish to manufacture a tank to suite a particular location on your vehicle or vessel. Weld this collar into your tank and you have a vented lockable cap

PRICE: $69.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

SF2300 Diesel pump 12volt P/N SF2-0001

Diesel pump to suit SF2300 and SF4200. Includes diaphram housing to smooth out the fuel pulse to the burner cartridge

NOTE: THIS PUMP MAY BE USED WITH OTHER HEATERS (NOT WEBASTO) PLEASE CONTACT US

PRICE: $266.30 inc gst

FREIGHT: $12.95 Aust wid

WARRANTY: 12 months

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Fuel pump insulator for SF2300 & SF4200 pumps

Q. What’s that ticking noise I hear when the heater is running ?

A. Its a question we hear all too often. The ticking noise is the fuel pump and it still surprises us that installers make the mistake of mounting the pump hard on the chassis or underside of the floor.

10mm closed cell noise suppression foam wrapped around the pump with a rubber isolation strap cures the problem.

Use the ‘P’ clamp supplied in the heater kit to attach the strap

PRICE: $15.00 inc gst (foam and strap only)

FREIGHT: $10.00 Aust wide

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Snugger SF2300 Control Interface P/N SF2-000610

Standard control interface for SF2300 and SF4200 heaters

PRICE: $116.20 inc gst

FREIGHT: TBA

WARRANTY: 12 months

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Wiring harness SF2300 and SF4200

Complete 5 mt wiring harness to suite the above

PRICE: $129.50 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Stainless steel 24mm i.d. flexable exhaust pipe

Fits SF2300 and SF4200 heaters

NOTE: EXHAUST SHOULD ALWAYS TERMINATE AROUND THE BOUNDRY OF THE VEHICLE TO REDUCE EXHAUST GASES BEING TRAPPED UNDER THE VEHICLE

PRICE: $49.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Exhaust pipe joiner/extender. Suites all 24mm i.d. flexi exhaust pipe

This is a Stainless steel connector that is a snug fit inside the 24mm i.d exhaust pipe. Its thin smooth inner wall doesn’t hinder exhaust flow. 80mm length.

This tubing is available in lengths up to 1800mm. Ideal if you need to get exhaust away from the annex side of your vehicle.

PRICE: $9.50 inc gst. Note:Does not include clamp or flexi exhaust in image

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Stainless steel 24mm i.d. bolt type Exhaust pipe clamp

These clamps are designed to properly secure the exhaust pipe onto the heater outlet.

NOTE: NEVER USE CHEAP WORM DRIVE CLAMPS IN THE SAME SITUATION BECAUSE THEY DO NOT HAVE THE STRENGTH TO COMPRESS THE EXHAUST PIPE

PRICE: $9.50 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Combustion air intake pipe 24mm i.d.

Suites SF2300 and SF4200 heaters.

NOTE: THIS PIPE IS BEST KEPT AS SHORT AS POSSIBLE AND RUN TOWARDS THE MIDDLE OF THE VEHICLE TO REDUCE THE LOAD ON THE FAN MOTOR AND KEEP INTAKE ROAR TO A MINIMUM

PRICE: $14.95 inc gst P/Mtre

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Worm drive hose clamp 26mm

Suites SF2300 and SF4200 24mm i.d. combustion air intake pipe.

NOTE: DO NOT USE THESE CLAMPS ON THE HEATER’S EXHAUST PIPE

PRICE: $1.95 inc gst

FREIGHT:

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

Floor mounting plate and Gasket

Thru floor mounting plate and gasket suite SF2300 and SF4200 heaters. This stops the interior of you vehicle being effected by exhaust gases or diesel vapour if a hose clamp fails.

NOTE: THIS PLATE IS SUITABLE FOR ANY 2000w SERIES HEATER ON THE MARKET

PRICE: $18.50 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

60mm hot air ducting

Suites SF2300 heater

NOTE: ALL 2000w HEATERS ON THE MARKET USE 60MM DUCTING. 60MM DUCT IS ALSO COMMONLY USED WITH LARGER HEATERS (SF4200) AFTER IT BRANCHES OFF THE 90MM MAIN DUCTING.

AVAILABLE IN 1500MM LENGTHS ONLY

PRICE: $49.50 inc gst

FREIGHT:

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

60mm hot air ducting clamp

Suites the above

PRICE: $3.95

FREIGHT:

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

90mm hot air ducting

Suites SF4200 heater. Used as the main duct between heater and living/saloon area outlet. 60mm duct would branch off this to other areas of the vehicle/vessel.

NOTE: ALSO SUITES MOST OTHER 4000-5000w HEATERS ON THE MARKET

PRICE: $49.50 inc gst P/Mtre

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

90mm hot air ducting clamp

Suites the above

PRICE: $4.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

60MM HOT AIR ELBOW

Suites SF2300 heater. This elbow fits directly onto the hot air outlet of the heater living in a restricted area where the 60mm ducting cannot be bent into a tight enough radius.

NOTE: SUITES ANY 2000w HEATER ON THE MARKET

PRICE: $18.95 inc gst

FREIGHT: TBA

WARRANTY:

SPECIFICATIONS:

ENQUIRE: sales@dieselheatingaustralia.com

60/60/60mm HOT AIR Y PIECE

Offers the installer the option of branching off the ducting between the heater and the main outlet. It would generally have a closeable outlet at the end so all heating energy can be directed to the main outlet when required.

PRICE: $29.95 inc gst

FREIGHT: $10.00 Aust wide

WARRANTY:

SPECIFICATIONS:
